5 Inch Coaxial Speaker 20W Economic Ceiling Speaker Flush Mount

Place of Origin : Guangdong, China

Model Number : CL-345V

MOQ : 100

warranty : 3years

dimension : 203*80

power source : Other

output power : 20w

Shell Material : ABS

the body material : plastic

Operating Voltage : 100V

Installation : Flush Mount

Frequency response : 100-20KHZ

Magnet Material : Ferrite

Contact Now

5 Inch Coaxial Speaker 20W Economic Ceiling Speaker Flush Mount

Product Description

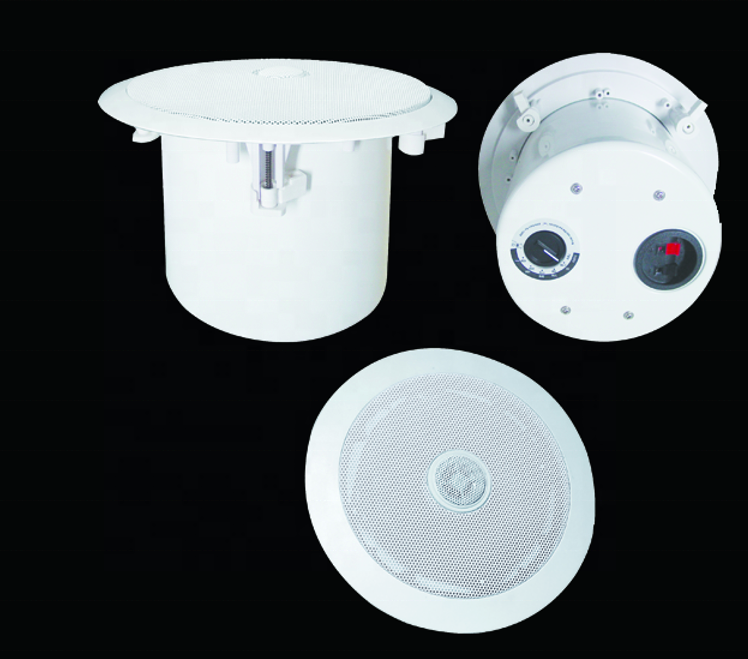

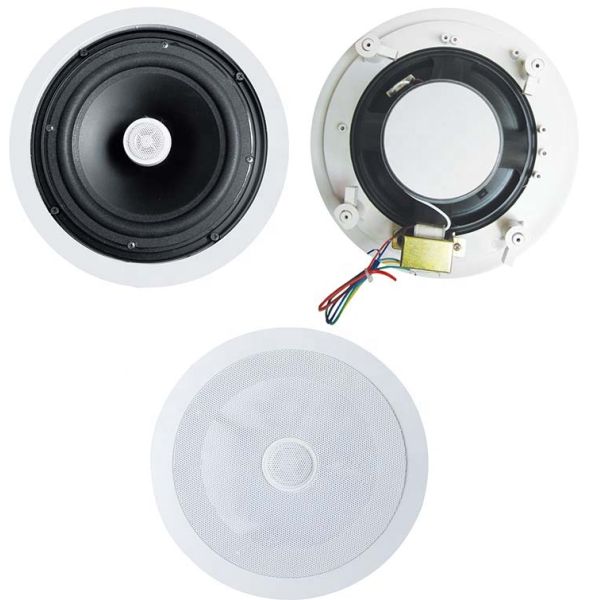

CL-345V-CL-348V This series are ceiling speakers with 5”,6”8” coaxial speaker units, made of metal grille and ABS baffle in white color. The design of rotatable eyeball tweeter can be tilted to change the dispersion angle to span the music to the target area. Easy and secure ceiling installation by flush mount. It is an ideal choice for industrial and commercial applications in hotels, schools, offices and factories where background music or paging is needed.

The CL - 345V is a high - performance ceiling speaker, an ideal choice for industrial and commercial background music and paging applications, such as in hotels, schools, offices, and factories.

Speaker Unit
* Size: Equipped with a 5 - inch coaxial speaker unit, ensuring clear and balanced audio output.
* Tweeter Design: Features a rotatable eyeball tweeter. This unique design allows the tweeter to be tilted, enabling users to change the dispersion angle and direct the music precisely to the target area, enhancing the listening experience.

Construction
* Material: Made of a metal grille and an ABS baffle, both in white color. The metal grille provides durability and protection,
while the ABS baffle offers a sleek and aesthetically pleasing appearance that can blend well with various ceiling
environments.
* Installation: Designed for easy and secure ceiling installation via flush mount. The mounting hole size is 170mm, facilitating a hassle - free setup process.

Technical Specifications
* Power: Operates at 20W, providing sufficient audio power for general background music and paging needs.
* Voltage: Works with a 100V power supply, suitable for standard commercial audio systems.
* Sensitivity: Has a sensitivity of 88DB, ensuring efficient conversion of electrical signals to sound.
* Frequency Range: Covers a frequency range of 100 - 20KHZ, allowing for the reproduction of a wide spectrum of sounds, from deep bass to clear treble.

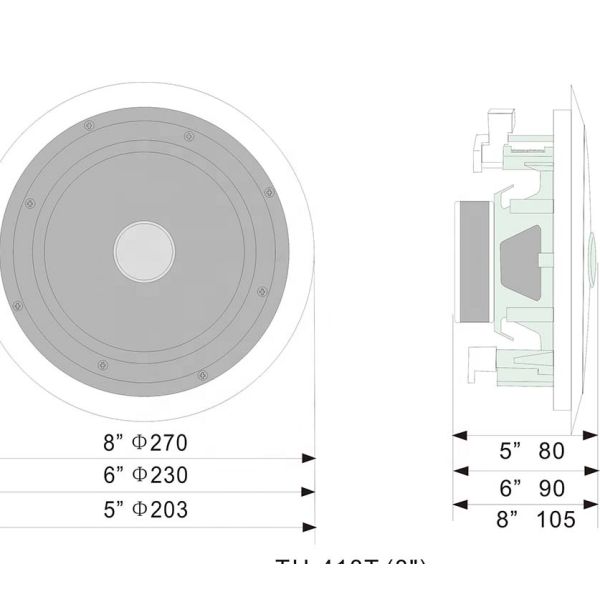

* Product Dimensions: Measures 203*80mm, and the weight is 1.25kgs, making it compact and easy to handle during installation.

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension	Material
CL-345V	5''	20W	100V	88DB	100-20KHZ	203*80	ABS
CL-346V	6''	30W	100V	89DB	90-20KHZ	230*90	ABS
CL-348V	8''	40W	100V	90DB	50-20KHZ	270*105	ABS
